Description

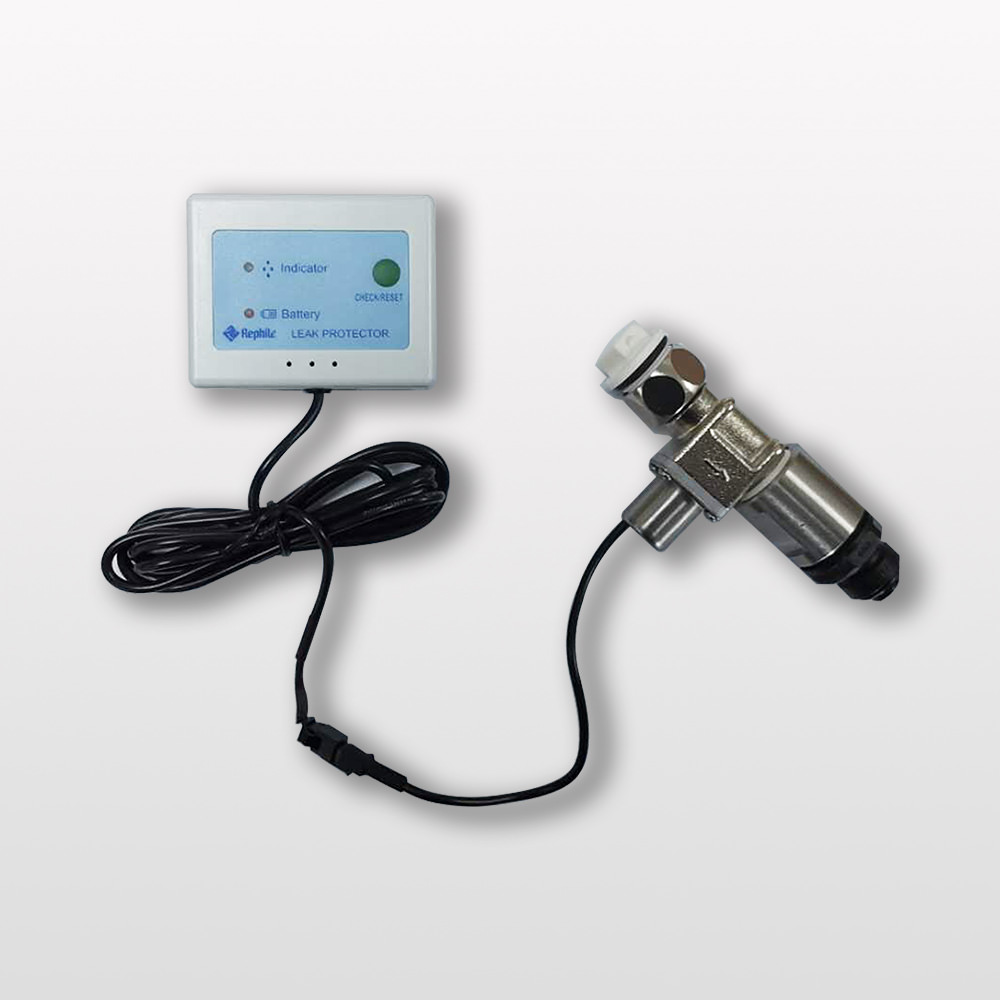

Leak protector RAPRC0111 is equipped with an automatic water shutoff valve of feed water to prevent damage to the lab should unpredicted happens. The unit is battery operated, does not require external power.
Package：1/ PK
Specifications：
Operating voltage: 9 V DC
Working current: typical 1.0 mA, maximum 15.0 mA
Cable length: 1.5 M to the solenoid valve
Fitting: 3/8 inch quick connector on 1/2″ male BSP
Method of Water leak detection: Conductivity. Put the control unit on the floor near the water purification system
Operating temperature: -20～80 oC
Maximum inlet pressure: 6 bar (90 psi)
Package Dimensions & Gross Weight:
Length X Depth X Height (mm): 155X130X95
Gross Weight (kgs): 0.32
Suitable for the following systems:
