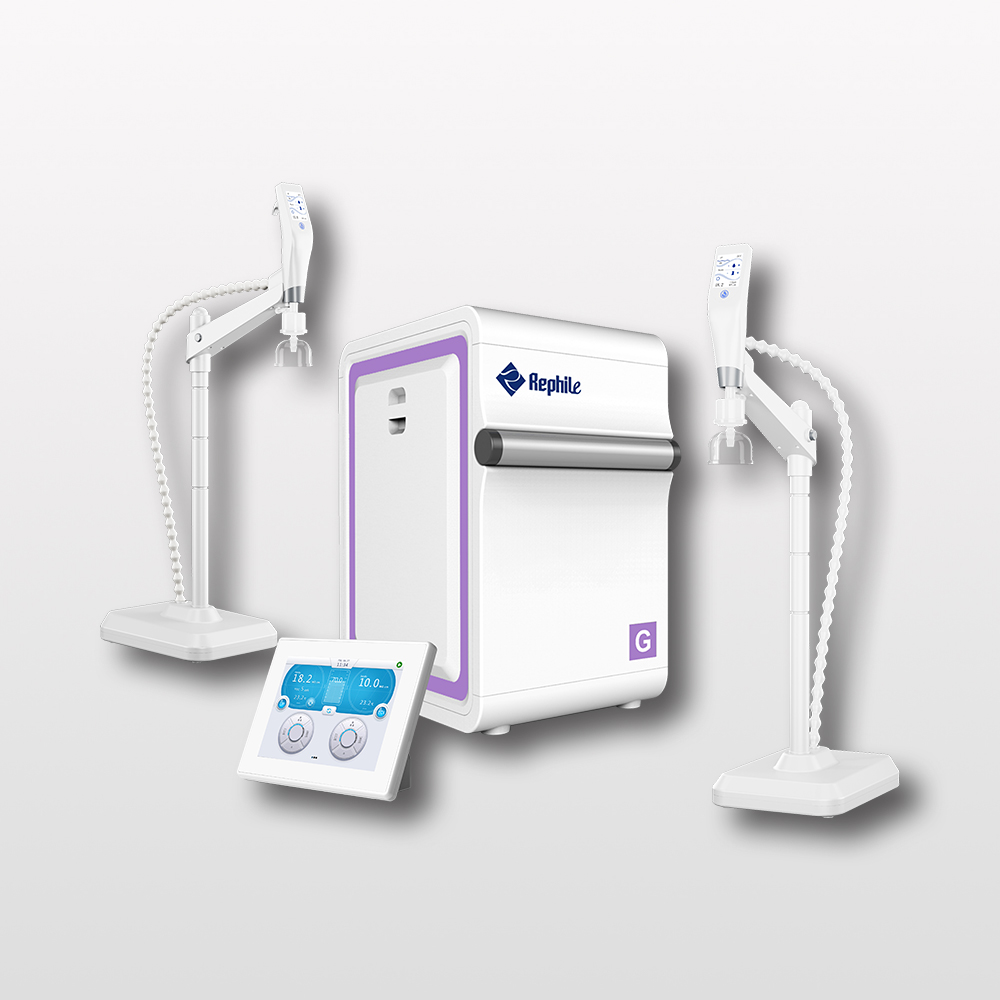

Genie G Ultrapure & EDI Lab Water Systems Sets

$18,142.00$21,336.00

Genie G produces ultrapure water (Type I water) and EDI water (Type II water) from tap water directly.

Systems with TOC:RG0G005T0, RG0G010T0, RG0G015T0
Standard sets: RG0G005T0K, RG0G010T0K, RG0G015T0K

Select a standard set:

Description

Genie G ultrapure water System produces ultrapure water (Type I water) and EDI water (Type II water) from tap water directly. Quality of ultrapure water and EDI water meet or exceed ASTM, CLSI, CAP, and ISO Type I water and Type II water standards, respectively. The system is CE/RoHS certified with supporting documents to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

General specifications
FeedMunicipal water, Conductivity < 2000 μS/cm (1000 ppm)
ProductUltrapure & EDI pure water
Feed water pressure1 - 6 bar (15 - 90 psi)
RO rejection97 to 98% ionic rejection (new RO cartridge)
> 99% organic rejection
> 99% particulates & bacteria rejection
EDI production rate (@ 25℃)5, 10, 15 L/hr
Dispensing rateUp to 2.0 L/min
EDI resistivity (@ 25℃)> 5 MΩ·cm (typically 10 - 16 MΩ·cm)
EDI water TOC*< 30 ppb
Ultrapure water resistivity (@ 25℃)18.2 MΩ·cm
Ultrapure water TOC*< 2 ppb
Particles in ultrapure waterNo particles (with a 0.2 μm final filter or RephiBio)
Microorganisms in ultrapure water< 0.01 cfu/ml (with a 0.2 μm final filter or RephiBio)
Pyrogens in ultrapure water< 0.001 Eu/ml (with a RephiBio filter)
RNase in ultrapure water< 0.5 pg/ml (with a RephiBio filter)
DNase in ultrapure water<10 pg/ml (with a RephiBio filter)
Main system Width × depth × height32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in)
Dispenser Width × depth × height21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in)
Product Water in Tank resistivity (@25°C)>1MΩ·cm (default), adjustable (for tank recirculation models)
Weight20 kg
Input Voltage110 - 240 VAC
Operating Voltage24 VDC
Main system power< 200 W

*In the appropriate operating conditions, otherwise typically ≤5 ppb.

For more information >>

Related products:

Genie PURIST Ultrapure Lab Water System

Genie G Sets

You can either choose consumables & accessories to work with a water system based on your individual requirements or just select one standard kit set. Details of the sets are described below.

A Genie G Set includes:
Main system; Control Console; One Dispenser; RO membrane(s); UV preinstalled; Genie Cleaning Pack; Four cartridges and a final filter; 30L tank with LED UV lamp and vent filter; Leak protector.  Tank recirculation is optional.

Please note that only one dispenser for ultrapure water is included in the set. Please purchase separately if more dispensers are required.

Each Set catalog number includes consumables and accessories listed in this table other than a main water system.

GenieGCatalogNo.RG0G005T0KRG0G010T0KRG0G015T0KDescriptionRephiLeProductdescription
EDI Prod. Rate(L/h)51015
TOCYYY
It includes:
RG0B01001111Control Console
RG0P0U001111Dispenser Kit
RR70R100112RO Pack (12L/h)
RR70R15012RO Pack (16L/h)
RALE005A1111Bactericidal UV lamp for systems
RAUV357B7*111185/254nm UV lamp
RR700CL01111Cleaning Pack
RR700AC01111AC Pack
RR700CP01111P Pack
RR700Q301111U Pack
RAFFC72501110.22 μm PES Final Filter
RATK030GE11130 L Tank with Tank UV
RATANKVN7111Tank Vent Filter
RAPRC0118111Leak Protector
RAPRC0127111Sanitization module

* Preinstalled
