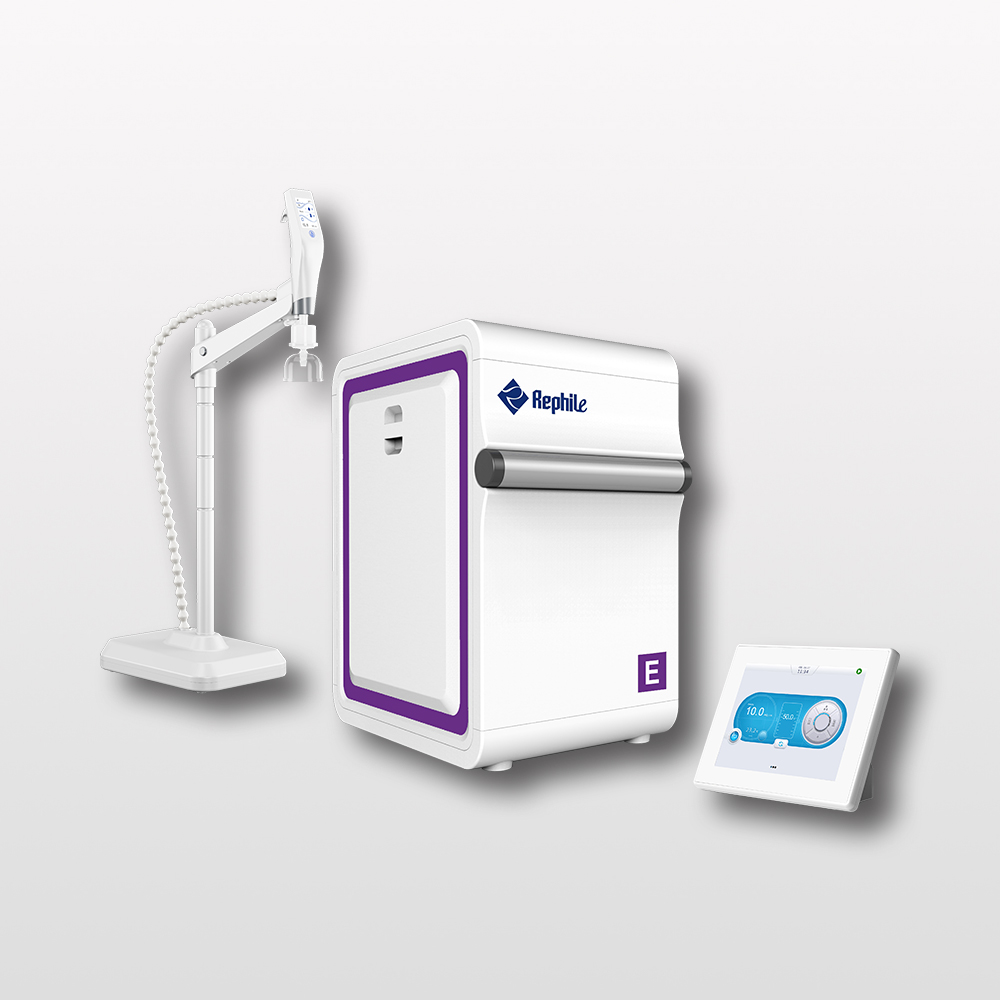

Genie E EDI Lab Water System Sets


Genie E produces EDI water (Type II water) from tap water directly.

Regular systems: RG0E00500, RG0E01000, RG0E01500
Systems with tank recirculation:RG0E00500K, RG0E01000K, RG0E01500K
Standard sets:RG0E0050R, RG0E0100R, RG0E0150R, RG0E0050RK, RG0E0100RK, RG0E0150RK

Select a standard set:


Genie E produces EDI water (Type II water) from tap water directly.

The resistivity of the product water is above 5 MΩ•cm at 25 ℃, which meets or exceeds Type II water quality as defined by ASTM, CAP, CLSI and ISO 3696 / BS 3997 and also complies with the purified water requirements from the European and U.S. Pharmacopoeia. The system is CE/RoHS certified with supporting documents to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

General specifications
FeedMunicipal water, Conductivity < 2000 μS/cm (1000 ppm)
ProductEDI pure water
Feed water pressure1 - 6 bar (15 - 90 psi)
RO rejection97 to 98% ionic rejection (new RO cartridge)
> 99% organic rejection
> 99% particulates & bacteria rejection
EDI production rate (@ 25℃)5, 10, 15 L/hr
Dispensing rateUp to 2.0 L/min
EDI resistivity (@ 25℃)> 5 MΩ·cm (typically 10 - 16 MΩ·cm)
TOC*< 30 ppb
Product Water in Tank resistivity (@25°C)
>1MΩ·cm (default), adjustable (for tank recirculation models)
Main system Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in)
Dispenser Width × depth × height21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in)
Weight20 kg
Input Voltage110 - 240 VAC
Operating Voltage24 VDC
Main system power< 200 W

*Product water quality may vary due to local feed water conditions.

For more information >>

Genie E Sets

You can either choose consumables & accessories to work with a water system based on your individual requirements or just select one standard kit set. Details of the sets are described below.

A Genie E Set includses:
Main system; Control Console; RO membrane(s); Genie Cleaning Pack; UV preinstalled; Two cartridges and a final filter; 30L tank with LED UV lamp and vent filter; Leak protector.

Standard sets with tank circulation are available. Any questions as to the following kits: RG0E0050RK, RG0E0100RK, RG0E0150RK, please contact your local sales representative or distributors.

Please note that there is no dispenser in a set. Please purchase separately if you need one or more.

Each Set catalog number includes consumables and accessories listed in this table other than the main water system.

EDI Prod. Rate (L/h)51015
Tank circultaionNNN
It includes:
RG0B01001111Control Console
RR70R100112RO Pack (12L/h)
RR70R15012RO Pack (16L/h)
RALE005A1*111Bactericidal UV lamp for systems
RR700CL01111Cleaning Pack
RR700AC01111AC Pack
RR700CP01111P Pack
RATK030GE11130 L Tank with Tank UV
RATANKVN7111Tank Vent Filter
RAPRC0118111Leak Protector
RAPRC0127111Sanitization module

* Preinstalled

>> Click here for details about consumables and accessories.
