Description

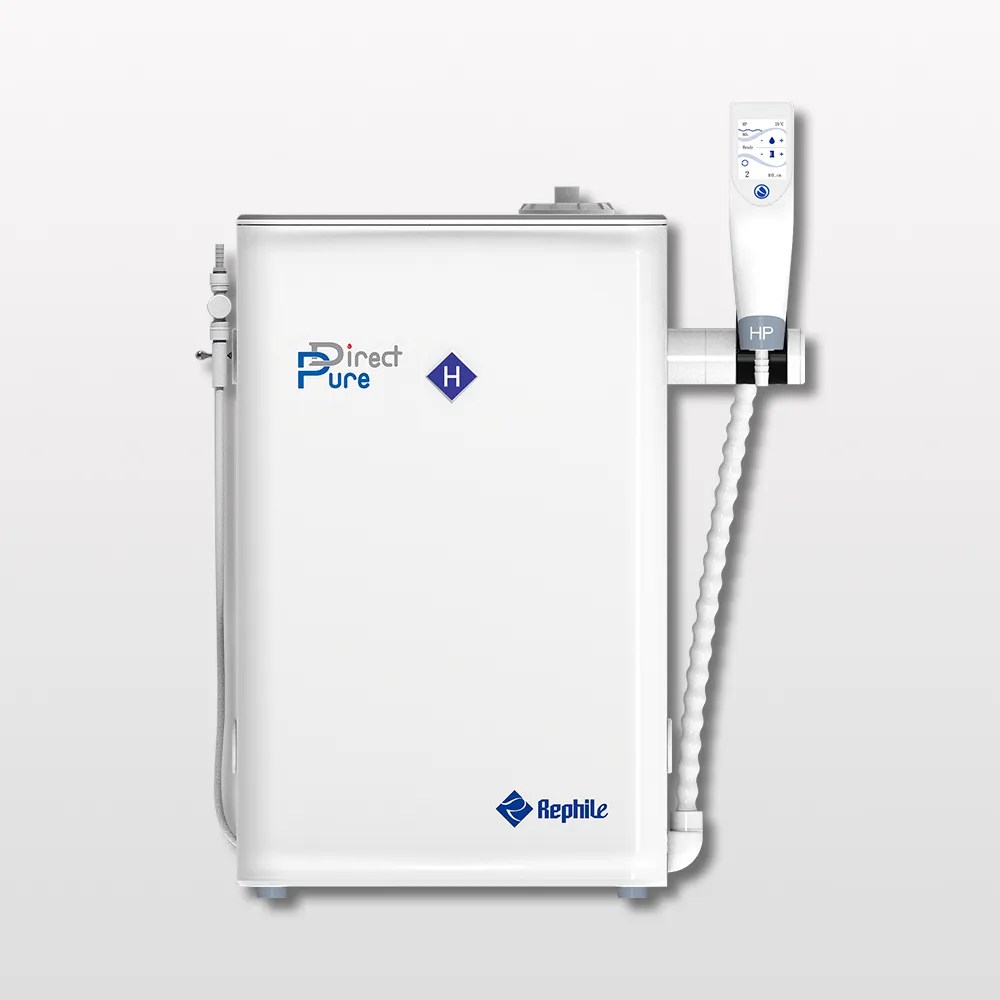

Direct Pure Water System, H 24/45
Direct Pure H 24/45 is a small-footprint laboratory water purification system that generates deionized (DI) water directly from tap water. Each system comes standard with an HP dispenser and a ball valve. These system-mounted components allow users to easily access DI purified water. This water system is classified into two series, the 24 and the 45, based on their RO flow rates.
Direct Pure H systems incorporate state-of-the-art, customer-centered designs that focus on user experience. Their compact footprint ensures seamless integration into any laboratory setting while offering enhanced convenience in every aspect of operation.
Manufactured in our ISO 9001:2015 and ISO 14001:2015 certified production facility, this system is also CE and RoHS compliant.
| General Specifications | ||
|---|---|---|
| Operating voltage | 24 VDC | |
| Input voltage | 100 - 240 VAC | |
| Main system power | < 190 W | |
| Feed Water Requirements | ||
| Feed water | Tap water | |
| Feed water conductivity / TDS | < 2000 μS/cm / < 1000 ppm | |
| Operating temperature | 5 – 35 °C | |
| Feed water pressure | 1 – 6 bar (15 – 90 psi) | |
| Product Water Quality | ||
| DI production rate | 24L/45L/hr | |
| DI water dispensing rate | Up to 2 L/min | |
| DI water Resistivity (@25°C) | > 1 MΩ·cm | |
| Product Water Quality Stored in Tank | ||
| DI water Resistivity (@25°C) | > 1 MΩ·cm (default), adjustable | |
| RO rejection | 97 to 98% ionic rejection (new RO cartridge) > 99% organic rejection > 99% particulates & bacteria rejection |
|
| Dimensions & Weight | ||
| Dimensions (W x D x H) | w/ integrated tank | 414 x 422 x 624 mm (16.3 x 16.6 x 24.5 in) |
| Weight (Approximate) | Net | 20 kg |
| Gross | 29 kg | |
