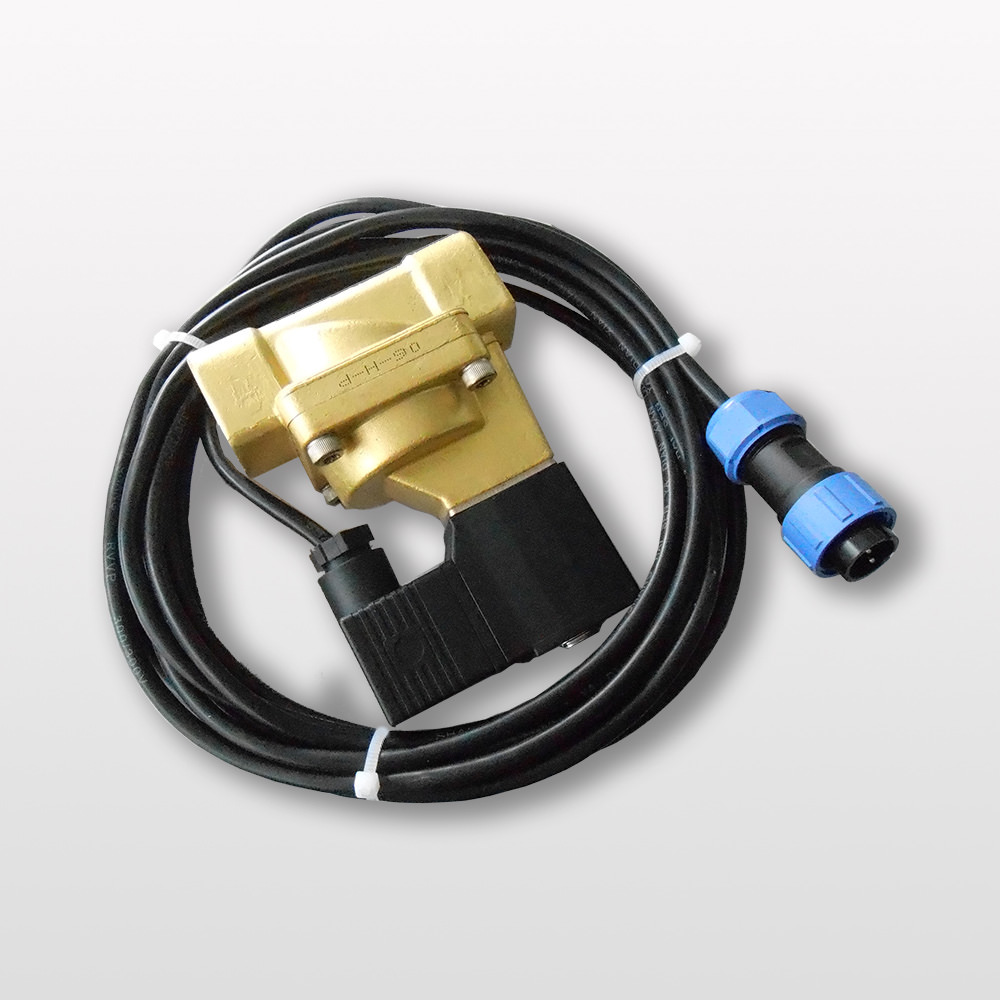

Feed Solenoid Valve RAPR000L4, RAPR000L6, RAPR000L8 for Super-Genie Water System

$116.00$265.00

USD Price

Feed solenoid valve is required when there is a feed tank and leak protector.

The feed solenoid valve is also served as the shut off valve for the leak protector. Thus the valve is installed immediately after the feed water outlet. This way, when there is a leak, water is shut off from the source to prevent further damage from leaking.

Clear

Description

Feed solenoid valve RAPR000L4, RAPR000L6, RAPR000L8 are required when there is a feed tank and leak protector.

The feed solenoid valve is also served as the shut-off valve for the leak protector. Thus the valve is installed immediately after the feedwater outlet. This way, when there is a leak, water is shut off from the source to prevent further damage from leaking.

RephiLe Catalog No.: RAPR000L4

Package:1/ PK

Specifications:

Materials: Stainless steel

Inlet and outlet diameter: 1/2 ” NPTF

Max. operating pressure ≤ 1.0 MPa

Package Dimensions & Gross Weight

Length X Depth X Height (mm): 155 X 130 X 95

Gross Weight (kgs): 0.50

Suitable for the following RephiLe water systems:

Super-Genie G 30/60

Super-Genie U 50

Super-Genie E 30/60

Super-Genie R 50

————————————————————————————————————–

RephiLe Catalog No.: RAPR000L6

Package:1/ PK

Specifications:

Materials: Stainless steel

Inlet and outlet diameter: 3/4 ” NPTF

Max. operating pressure ≤ 1.0 MPa

Package Dimensions & Gross Weight

Length X Depth X Height (mm):

Gross Weight (kgs):

Suitable for the following RephiLe water systems:

Super-Genie G 125

Super-Genie U 150

Super-Genie E 125

Super-Genie R 150

————————————————————————————————————–

RephiLe Catalog No.: RAPR000L8

Package:1/ PK

Specifications:

Materials: Stainless steel

Inlet and outlet diameter: 1 ” NPTF

Max. operating pressure ≤ 1.0 MPa

Package Dimensions & Gross Weight

Length X Depth X Height (mm):

Gross Weight (kgs):

Suitable for the following RephiLe water systems:

Super-Genie G 250

Super-Genie U 300

Super-Genie E 250

Super-Genie R 300

For details about Feed Solenoid Valve RAPR000L4, RAPR000L6, RAPR000L8, click here >>
